Quick Details

  • Condition: New
  • Type: Impact Crusher, Crusher machine
  • Application: stone, stone and ore
  • Motor Type: AC Motor
  • Power(W): 110KW
  • Capacity(t/h): 40-450t/h
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Zenith
  • Model Number: PFW Series
  • Dimension(L*W*H): 2700X2870X2800
  • Certification: CE
  • Warranty: One Year
  • After-sales Service Provided: Overseas service center available
  • certification: ISO9001:2000
  • Spare Parts Supply: For Whole Year
  • Test&Installation: Engineer Assigned
  • After-sale service: For Whole Year

Packaging & Delivery

Packaging Details Standard Container



Product Description







crusher machine, impact crusher machine with large capacity



PFW series crusher machine are the latest development of stone impact crusher based on zenith's more than 20 years experience and leading technology in PF impact crusher. PFW series crusher machine  have the features of heavy duty rotor design, unique hammer locking system, interchangeable wearing parts, and easy maintenance. This series crusher machine  provide customers low capital cost solutions, outstanding performance, good cubical shape, lowest operation cost per ton, and wide materials applications.

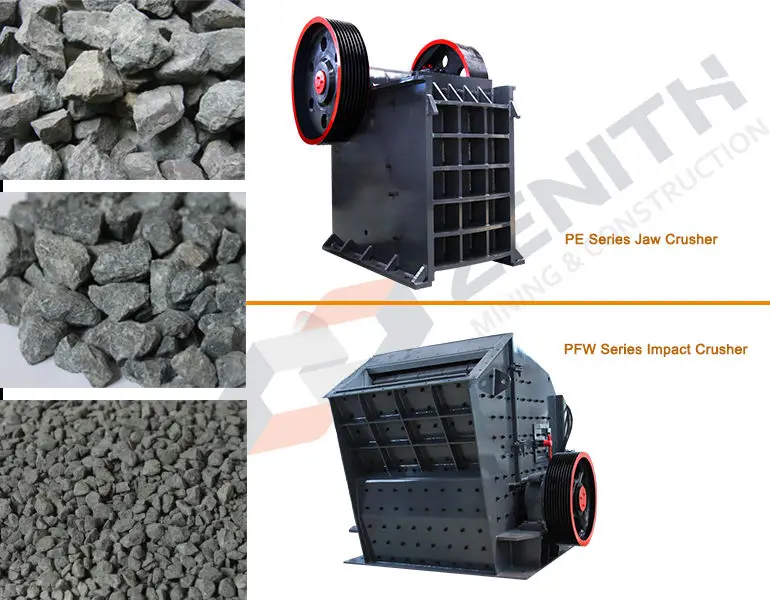

Finished Products







crusher machine structure and working principle:

Crusher machine working principle is applied to the operation of this impact crusher. When the crusher operating, the motor drives the rotor with hammers rotates in high speed, when the materials get into the crushing chambers, the rotating rotor impact the materials with hammers, then the crushed materials are thrown to the impact plates and then be rebounded from the impact liner to the crushing chamber where the blow bar would impact on the materials again, meanwhile the inertia can also carry the materials to impact each other, repeatedly, the materials from large to small all to be crushed at the impact chamber. The process wont stop till the material are crushed to the required size and then discharged from outlet of the highway crusher.





crusher machine features:



1. Heavy duty rotor design
2. Unique hammer locking device
3. Interchangeable liners
4. Flexible application in primary and secondary crushing
5. Easy operation and simple maintenance



crusher  machine Specifications:



  Two-curtain cavity hydraulic impact crusher:



ModelRotor ΦxL (mm)Feed Opening (mm)Max Feeding (mm)Capacity (t/h)Power (kw)Motor ModelMachine Size (mm)
PFW1214II1150x14001100x1430500130-2004-132Y315M-4/1322400x2310x2550
PFW1315II1300x15001200x1530600180-3204-160Y315L1-4/1602700x2570x2800
PFW1318II1300x18001200x1830700240-4004-200Y315L2-4/2002700x2870x2800
PFW1415II1400x15001450x1530800240-4504-200Y315L2-4/2003000x2700x3070



Three-curtain cavity hydraulic impact crusher:



ModelRotor ΦxL (mm)Feed Opening (mm)Max Feeding (mm)Capacity (t/h)Power (kw)Motor ModelMachine Size (mm)
PFW1214III1150x1400570x143025090-1704-132Y315M-4/1322550x2310x2100
PFW1315III1300x1500625x1530300180-2704-160Y315L1-4/1602960x2570x2380
PFW1318III1300x1800625x1830300220-3004-200Y315L2-4/2002960x2870x2380
PFW1415III1400x1500800x1530350280-3504-200Y315L2-4/2003120x2650x2660





Packaging & Shipping







Certifications









Company Information





ABOUT US



Shanghai Zenith Mining and Construction CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.





The head office of Zenith is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all Zenith machines are designed produced, assembled and texted according to the ISO9001:2008.



Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our Zenith, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
